Your New Reverse Camera Shows a Black Screen on the Android Stereo, but It Is Probably Not Broken: AHD vs CVBS Explained (India 2026)

The new Android stereo is in and the music sounds great. Then you shift into reverse and the screen goes black, or shows a picture for one second and drops it, or fills with rolling grey bars. The natural conclusion is that the camera is faulty. Usually it is not. Most of the time the camera and the head unit are speaking two different video formats, and both boxes said "AHD supported" without telling you which AHD.

This guide starts with the symptom, because the symptom points to the cause. It then explains what "AHD supported" actually promises and how to match the two ends. Everything here comes from manufacturer documents: Nextchip, the company that created AHD; Blaupunkt's official camera specification; three Android head unit instruction manuals; and support replies from a head unit maker and a camera installer.

Read the symptom first

Before changing any setting, note exactly what the screen does when you select reverse. Each failure looks different.

The first row is a wiring problem. The instruction manual for a universal double-DIN Android stereo describes the trigger as a separate red wire. It connects to the car's rear light positive, and "when you pull the rear gear, the device will automatically display the rear view image." If that wire is not connected, nothing tells the head unit you are reversing, and no setting change will help.

The same manual powers the camera from the reverse lamp too, red to the lamp positive and black to its negative. So the camera only gets power while reverse is selected. If the reverse lamp circuit is not reaching the camera, you get the second row: the screen switches, but there is no picture to show.

The last row belongs to a different article. If a working camera failed in the monsoon, our guide on why rain kills reverse cameras covers the connector that usually fails.

The middle three rows are where most new installs end up, and they all come back to one word on the box.

Why "AHD supported" tells you less than you think

AHD is a family of video formats, not one format. AHD (Analog High Definition) was developed by Nextchip, a Korean chip company, to carry HD video over the same kind of cable older analog cameras used. Nextchip's own product page lists its second-generation AHD at 720p in 25, 30, 50 or 60 frames per second, and 1080p at the same four frame rates. It goes up to 4MP at 25 or 30 frames, and 8MP at 15.

That is at least eight 720p and 1080p combinations before you reach the higher resolutions. A head unit that decodes one of them can honestly say "AHD supported". So can a camera that outputs a different one.

Here is what that looks like in real documents:

• A universal Android stereo built on the 8227L processor lists its "Rear Camera Standard" as "AHD720 & CVBS". That means 720p AHD, not 1080p.
• When a customer on Dasaita's support forum fitted a 1080p AHD camera to a Dasaita head unit, the company's reply was direct: "Currently Dasaita's devices only support AHD 720p (1280x720), the reason the image is only displayed for 1 second and then shut off is because you have set your Camera to AHD 1080p mode." That explains the third row of the table.
• Even one maker's own documents can disagree. Blaupunkt India's web specification for the BC DH3.1 AHD camera lists 1280 x 720 effective pixels, which is 720p. The current retail box for the same model says "1080P Full HD" and "1920 X 1080 effective pixels". If the maker's two documents differ, a seller's listing is no safer, and the only reliable answer is what the camera in your hand actually outputs.

We have to be honest about our own catalogue here too. Of the 26 Android head unit listings in our store, 17 mention AHD camera support, and none clearly states which AHD resolution and frame rate the unit decodes. That is how the category is sold in India, and it is exactly the gap this problem falls into. If you are buying a head unit and a separate camera, the question to ask is not "does it support AHD?" It is "AHD 720p or 1080p, and at 25 or 30 frames?"

CVBS, PAL and NTSC: the fallback every unit we checked accepts

CVBS is the older standard-definition analog video signal, the yellow-RCA kind. All three Android head unit manuals we checked list it alongside AHD: "AHD720 & CVBS", "Reversing input: AHD/CVBS", and "support AHD and CVBS camera". That is why CVBS is the safe common ground when an AHD pairing will not work.

CVBS also comes in two timings, PAL and NTSC. Blaupunkt's DH3.1 sheet shows how a single camera can carry more than one of these. Its signal system is listed as "Default-AHD (PAL), CVBS (NTSC)". Out of the box it sends AHD at PAL timing (25 frames), and in its standard-definition mode it switches to NTSC. The head unit's setting has to match whichever mode the camera is actually in.

An Australian installer's support page, PVS Automotive, describes the mismatch symptoms plainly. A black screen, or "rolling or scrolling bars" with monochrome noise, usually means "your camera outputs one standard (AHD) while the headunit expects another (CVBS)."

Matching the two ends

There are two places to change things: the head unit's camera format setting, and the camera's own output mode.

On the head unit. On many Android units the camera format sits inside the factory settings menu, behind a password. The manuals we read use 8888 and add a warning in brackets: "Different products, the password may be different." The menu wording varies between brands, so look for anything mentioning reverse, camera, rear view or video format. The options, where your unit offers them, are a list of AHD resolution and frame-rate pairs plus CVBS PAL and CVBS NTSC. If your unit offers no AHD option at all, it should be treated as CVBS-only, whatever the box said.

On the camera. Some AHD cameras can be switched to a lower mode, often with a control wire on the camera lead. In the Dasaita forum thread, the customer reported that cutting the camera's control wire dropped it from 1920 x 1080 to 1280 x 720. The wire colour and the direction of the change differ between makers, so read your camera's own instructions before cutting anything. A cut wire cannot be uncut neatly.

The order that saves the most time:

1. Confirm the trigger. Does the screen switch at all when you select reverse? If not, fix the wiring before anything else.
2. Confirm camera power. With the ignition on and reverse selected, the camera should have 12V at its power lead. Blaupunkt rates the DH3.1 at 12V plus or minus 3V and 70mA.
3. Find the camera's default mode on its box or spec sheet, and set the head unit to match. For a DH3.1 in the current 1080p box, start with AHD 1080p at 25 frames (PAL timing). If the picture flashes and drops, try AHD 720p at 25, then CVBS NTSC.
4. If the sheet does not say, step through the head unit's options one at a time. Run a full reverse cycle after each change, as PVS recommends. Shift out of reverse and back in, rather than judging the result straight away.
5. If the camera outputs more than the head unit can take, step the camera down, first to a lower AHD resolution, then to CVBS. Do not keep cycling settings hoping a 1080p signal will appear on a 720p decoder.
6. If nothing works, test with a known-good camera on a short lead plugged straight into the head unit. That separates a camera fault from a cable fault.

Is AHD worth the trouble?

Yes, when both ends genuinely match. A standard-definition PAL video frame, the format CVBS carries, is 720 x 576 pixels under the ITU-R BT.601 standard. That is 414,720 pixels. A 720p AHD picture is 1280 x 720, or 921,600 pixels, a little over twice as much. A 1080p AHD picture is 1920 x 1080, about five times the SD frame. Those are the ceilings of each format. What you actually see also depends on the camera's sensor and lens, but the format sets the limit.

That number is also the cost of the quick fix. Dropping a camera to CVBS to make a mismatch go away works, and every unit we checked will accept it. But you give up most of the detail you paid AHD prices for. The better fix is a camera and head unit that agree on the same AHD format.

A higher camera resolution does not help if the head unit cannot decode it. A 1080p camera has 2.25 times the pixels of a 720p one, but on a 720p-only head unit it shows a black screen, not a sharper one.

If you are buying a camera and head unit

• Buy the pair together where you can, or at least from a seller who will tell you the exact AHD resolution and frame rate of both. Some head units in our range, such as the Blaupunkt Kingston 1100 and the Karzkin MMP-4000 Lite, come with a camera in the box, which takes most of the guesswork out of matching.
• If you buy separately, ask for the head unit's camera format list, not just the word "AHD".

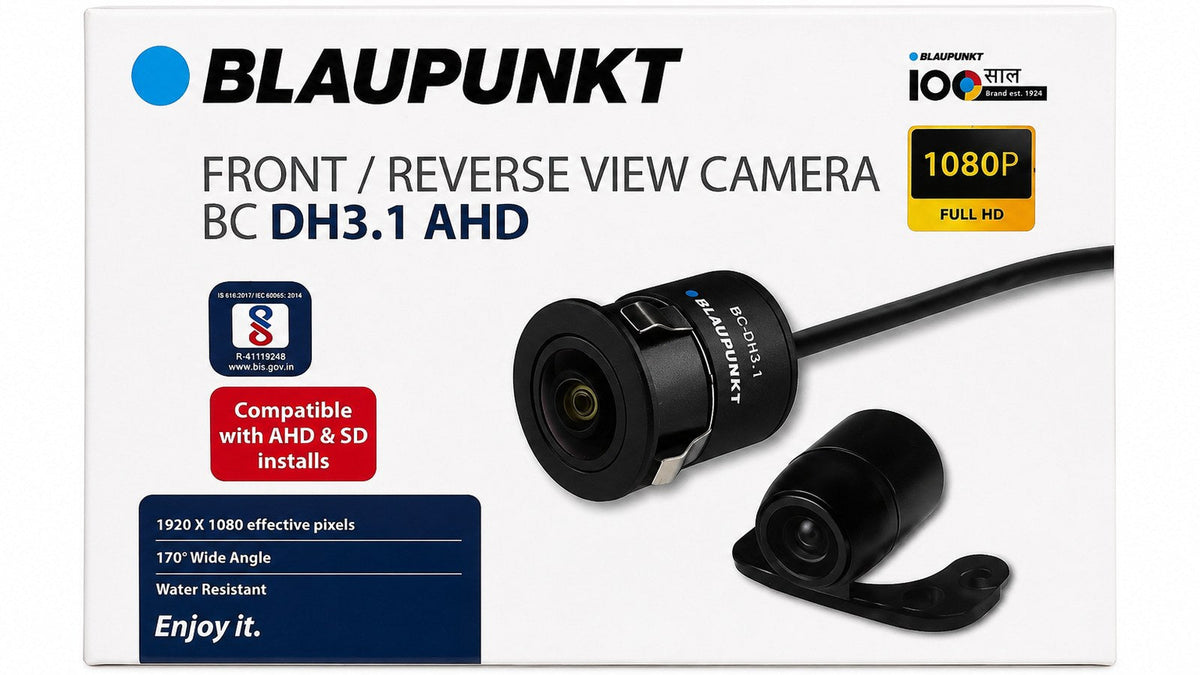

• A camera that supports both AHD and CVBS is the safer buy when you are not sure what the head unit decodes. Blaupunkt describes the BC DH3.1 (Rs.2,100 at our store) as "Compatible with AHD and SD installs". It is an AHD camera with a standard-definition (CVBS) mode, a 170 degree lens, and an operating range of -20 to 70°C on Blaupunkt's sheet. Go by the resolution printed on the box you receive when you set the head unit.
• Get the wiring right the first time. Most of the failures in the first row of the table are installation shortcuts. Our Android stereo installation guide covers the full harness, and our reverse camera buying guide covers choosing the camera itself.

If you would rather not open the boot lining yourself, bring the car to our JC Road counter in Bengaluru. Matching the camera format to the head unit is part of a proper fitment, not an extra. Browse our Android head units if you are still choosing one.

Sources we read

• Nextchip, AHD second generation (resolutions and frame rates)
• Blaupunkt India, DH3.1 AHD specification (pixels, signal system, power, temperature)
• Universal double-DIN Android stereo instruction manual (8227L, "AHD720 & CVBS", camera and trigger wiring, factory password)
• Android stereo instruction manuals for VW and BMW F30 series fitments (AHD and CVBS inputs)
• Dasaita support forum, MAX 10 PX6 AHD camera thread, February 2022
• PVS Automotive, black screen, rolling lines, or wrong picture on reverse

Questions owners ask

Why does my reverse camera show a black screen on my Android stereo?

If the screen switches to the camera view but stays black, the camera is either not getting power or is sending a video format the head unit is not set to decode. Check for 12V at the camera in reverse, then match the head unit's camera format setting to the camera's mode, for example AHD 720p at 25 frames or CVBS.

What is the difference between AHD and CVBS cameras?

CVBS is the older standard-definition analog video signal. AHD is a family of analog high-definition formats, from 720p and 1080p up to higher resolutions, carried over similar cable. Every Android head unit manual we checked accepts CVBS, but AHD only works when the head unit decodes the camera's specific AHD resolution and frame rate.

Why does my reverse camera picture appear for one second and then disappear?

That pattern usually means the camera is sending a higher AHD resolution than the head unit can decode. Dasaita, for example, has said its head units support only AHD 720p and that a camera set to AHD 1080p shows a picture for about one second before cutting out. Switch the camera to 720p or CVBS.

Where is the camera format setting on an Android car stereo?

On many units it is inside the factory settings menu, which asks for a password. The manuals we read use 8888 but note that the password can differ between products. Look for an option mentioning reverse, camera or video format, with choices such as AHD 720p, AHD 1080p, CVBS PAL and CVBS NTSC.

Is a 1080p reverse camera better than a 720p one?

Only if your head unit decodes AHD 1080p. A 1080p camera has 2.25 times the pixels of a 720p camera, but on a head unit that supports only AHD 720p, it shows a blank screen rather than a sharper picture. Check the head unit's format list before paying for resolution.

Why does my head unit not switch to the camera when I reverse?

The head unit is not receiving the reverse signal. On typical Android stereos, a separate trigger wire connects to the reverse lamp positive, so the unit knows when reverse is selected. If that wire is missing or connected to the wrong circuit, the screen will not switch, whatever the camera settings.
