Hertz DBA 201 Active Subwoofer Box – 8" Double Passive Radiator | 440W Peak | Class D Amplifier

Hertz DBA 201 – Premium Active Subwoofer Box | Dieci Series

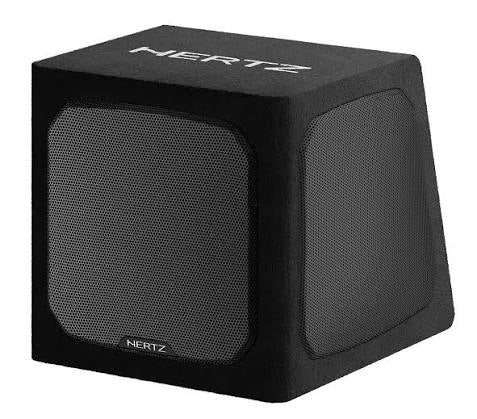

Experience deep, powerful bass in a compact package with the Hertz DBA 201 Active Subwoofer Box — part of the prestigious Italian Dieci series. Featuring a unique Double Passive Radiator design, this 8" active subwoofer delivers bass performance that rivals much larger enclosures, without sacrificing your boot space.

🔊 Key Features

• Double Passive Radiator Technology – Dual passive radiators + 8" active driver deliver deep, room-filling bass in a compact enclosure
• 440W Peak / 220W RMS Class D Amplifier – Massive power with low current draw using He-Li (High Efficiency/Low Impedance) technology
• FEM Optimized MDF Enclosure – Finite Element Method design eliminates resonance for pure, distortion-free bass
• 24 dB/Octave Low-Pass Crossover – Adjustable 50–150 Hz for precise frequency control
• Bass Boost (0–6 dB) – Fine-tune your bass intensity to match your music
• 0–180° Phase Inverter – Perfect acoustic alignment with your car's speaker system
• EV & Start-Stop Compatible – Wide operating voltage (6.5V–18V) for electric vehicles and modern cars
• Plug & Play Molex Harness – All-in-one quick-release connector for easy installation
• RCA & High-Level Inputs – Works with factory and aftermarket head units

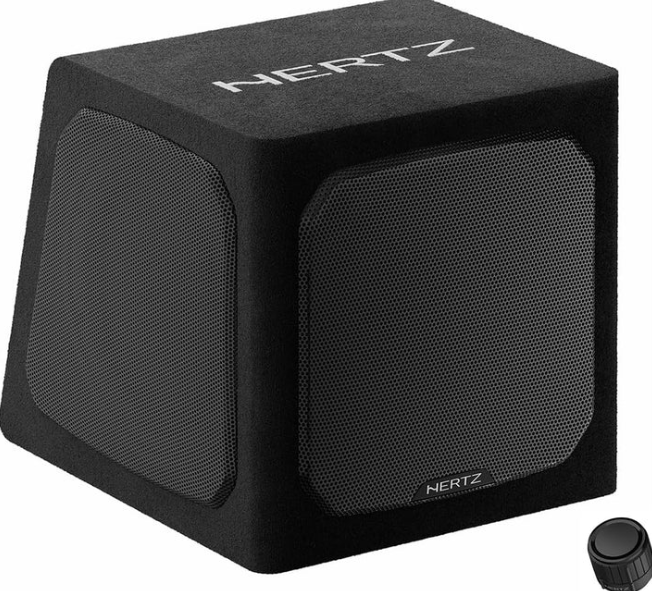

• HRC 01 Remote Level Control Included – Adjust bass from the driver's seat with 15 dB range

⚙️ Specifications

• Brand: Hertz (Italy)
• Model: DBA 201 (Dieci Series)
• Active Driver: 8"
• Passive Radiators: 2 x 8"
• Peak Power: 440W | RMS: 220W
• Amplifier: Class D (He-Li Technology)
• Crossover: 24 dB/Octave (50–150 Hz)
• Bass Boost: 0–6 dB
• Phase: 0–180°
• Input: RCA (0.2V–5V) & High-Level (1.2V–30V)
• Operating Voltage: 6.5V–18V
• Enclosure: FEM Optimized MDF

🚗 Ideal For

• Audiophiles wanting premium Italian bass quality

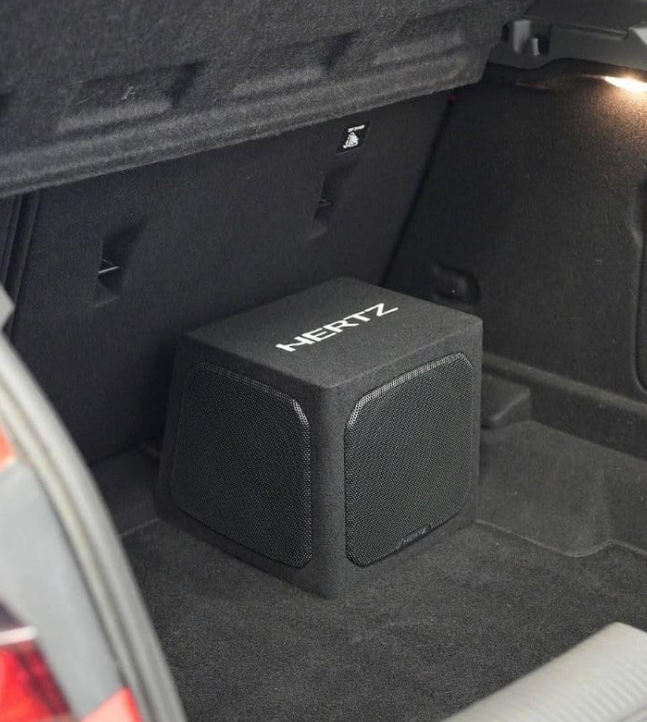

• Cars with limited boot space needing compact subwoofer
• Electric vehicles and Start-Stop cars
• Factory or aftermarket head unit integration

📦 What's in the Box

• Hertz DBA 201 Active Subwoofer Box
• Built-in Class D Amplifier
• Molex Plug & Play Harness
• HRC 01 Remote Level Control
• User Manual

🏪 Why Buy from Nandi Electronics?

• Authorized Hertz dealer on JC Road, Bangalore
• Genuine products with manufacturer warranty
• Free shipping across Karnataka, Tamil Nadu, Andhra Pradesh & Telangana
• Expert installation support and after-sales service

Professional installation recommended for best acoustic performance. Contact us for setup assistance.
